k1 [Request] Inverted Endar Spire's Panels

[ebmar 893]

Greetings, fellow Jedi! Hope you are doing fine.

I am here to request for your help with inverting the panels particularly inside the m01aa_10 and m01aa_09 model:

Spoiler

These panels noticeably looks inverted when using Dak Drexl's "Dak's Endar Spire Retexture". The inverted panels meshes is LHR_wall02. I believe they are still noticeable with the vanilla texture installed only by look at them closely, but by using Dak's texture the transition was quite significant. I have tried myself to "rotate" the panels but ends-up rotating the whole room.

Many thanks for considering this, and may the Force be with you!

[DarthParametric 3,785]

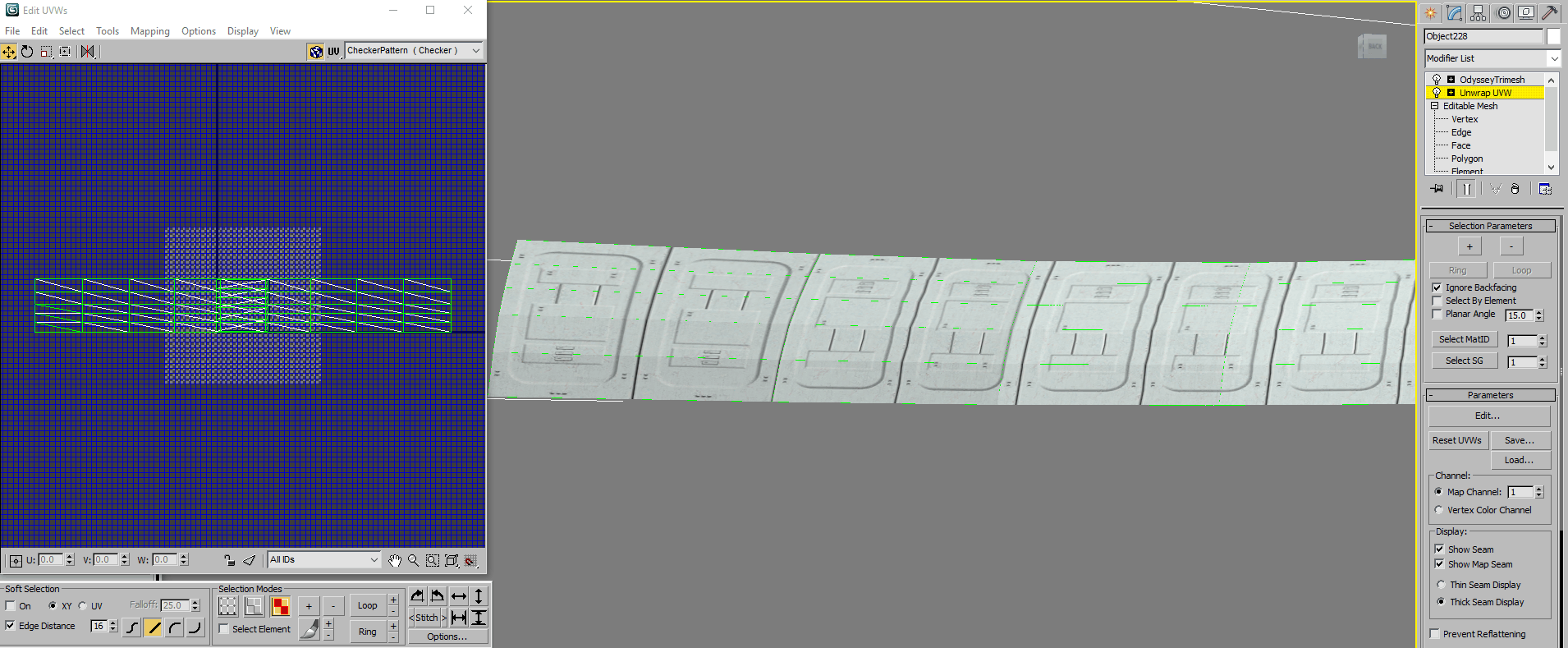

Good catch. The UVs for those panels are indeed flipped vertically. It's a pretty easy fix. Adding to my Endar Spire Hull Repairs mod shortly.

Edit: OK, done. Mod updated with the fixes for those corridor sections. Let me know if you spot any others.

[ebmar 893]

3 hours ago, DarthParametric said:

Good catch. The UVs for those panels are indeed flipped vertically. It's a pretty easy fix.

Thanks! I thought it would be somewhat impossible [in regards to my knowledge lol], because when I opened the model with KOTORmax the panel is indeed in one piece, as I was expecting they are separated. I actually have no thought about it was the UVs. Nice to hear that for you it was a pretty easy fix. 😁

Quote

OK, done. Mod updated with the fixes for those corridor sections.

Fantastic! Thank you for the fixes and the update.

• Here are the result of particular fixes:
  Spoiler





Quote

Let me know if you spot any others.

Actually, there are few of them left, but they're in the same model. It's inside m01ab_09a:

Spoiler

Anyway, inside its description is described; "Additionally adjusts the lightmap UVs to remove a light bloom that occurred during baking due to the offset geometry."

Does this occurrence is indeed a light bloom?

Spoiler

I have thought that it was something to do with envmapping; either false use of Cubemaps or the opacity in the alpha is just too solid. But either change to the said assumption didn't make any change on my end.

[DarthParametric 3,785]

I'll check out those other occurrences and add fixes for them to the mod.

33 minutes ago, ebmar said:

Anyway, inside its description is described; "Additionally adjusts the lightmap UVs to remove a light bloom that occurred during baking due to the offset geometry."

Does this occurrence is indeed a light bloom?

The light bloom is very small. It's shown in one of the pics:

Edit: OK, I think I got them all. New version uploaded with the fixes.

[DarthParametric 3,785]

1 hour ago, ebmar said:

when I opened the model with KOTORmax the panel is indeed in one piece, as I was expecting they are separated. I actually have no thought about it was the UVs.





[HK-47 84]

Lol. I will have downloaded this mod for the fourth time. Strange that those textures were flipped.

[Guest Sam Fisher]

Man, old games are weird.
