13 hours ago, ebmar said:

Will it be possible to change that grey area in the center of Taris' city-walk to some kind of a mini-pool with water model/textures in it?

Yes, you could edit the room model to add a water plane, maybe some fountain VFX nodes. That particular section of walkway would appear to be M02ac_02c.

Edit: Here's a quick and dirty example. A simple plane with one of the Manaan pond water textures (not sure if it is the best option) and some emitters stolen from the metal fountain placeable and duplicated three times:

I was actually thinking more in the vein of a traditional vertical type of fountain. I was sure I had seen something like that in one of the games, but it seems like there's nothing of that sort in K1 at least.



  • Like 2

Share this post


Link to post
Share on other sites
6 hours ago, DarthParametric said:

Edit: Here's a quick and dirty example. A simple plane with one of the Manaan pond water textures (not sure if it is the best option) and some emitters stolen from the metal fountain placeable and duplicated three times:
...

Damn. The very first time I opened the post there wasn't a preview already, but then minutes ago...


That is awesome, DP! I mean, how could that be a "quick and dirty example"? That is simply amazing. 😂

Quote

Yes, you could edit the room model to add a water plane, maybe some fountain VFX nodes. That particular section of walkway would appear to be M02ac_02c.

Thanks for the insight! I hope I can do this myself, but at the very least; would you consider releasing that as a mod? I really want to feel that experience strolling the Taris' city-walk with fountain init! 😁

Quote

I was actually thinking more in the vein of a traditional vertical type of fountain. I was sure I had seen something like that in one of the games, but it seems like there's nothing of that sort in K1 at least.

I have no any idea actually; how my vision about the mini-pool already presented right at the very front of my eyes; and it was lot better than my expectation to tell the truth! 🙌

Edited by ebmar

Share this post


Link to post
Share on other sites
4 minutes ago, ebmar said:

would you consider releasing that as a mod?

It probably needs some adjustment first. Testing of different water textures, maybe altering the textures of the fountain heads (they aren't lightmapped and are just using the placeable's texture). I'm about to head in to work for a few hours, but I'll play around with it when I get home. Plus there's the whole mod approval logjam (I think I have 3 already waiting for someone to hit the red button), so who knows when it would turn up.

  • Like 1
  • Light Side Points 1

Share this post


Link to post
Share on other sites
6 minutes ago, DarthParametric said:

I'm about to head in to work for a few hours, but I'll play around with it when I get home.

Many thanks for considering my query and, then comes-up with an amazing settlement. Very much appreciated. :respect:

Quote

That particular section of walkway would appear to be M02ac_02c.

...

Testing of different water textures, maybe altering the textures of the fountain heads (they aren't lightmapped and are just using the placeable's texture).

In the mean time I will try to fiddle around with the said area model. Hoping to find something to help at least. :cheers:

Share this post


Link to post
Share on other sites
43 minutes ago, DarthParametric said:

Here's the model if you want to play around with it. You can load the ASCII in KOTORMax.

Awesome! Thanks, DP! Hahah, yeah- I haven't figure out yet how to create those panels like you did, but I have managed to locate what mesh are used for the panel's flooring.

  • An earlier attempt of guessing what floor that should replace the "LTS_Bwall04" which have been used with the vanilla model:
Spoiler


I believe the "LTS_Bwall04" used for the floor should be changed, but haven't figured out yet what it should be.

Share this post


Link to post
Share on other sites

You can edit the ASCII directly in a text editor and reassign a new texture. Look for

node trimesh Mesh04

(should be line #12776) and then change

  bitmap LTS_Bwall04

Don't change "bitmap2", which is the lightmap. After you have pointed it to a different texture, you can compile it with MDLEdiit. You can discard the WOK (which is the walkmesh), as the vanilla one is fine.

It's easy enough to also split out the bottom of the grey surround if you also want to change the texture for that. In both instances though there might need to be a UV adjustment, depending on what texture/s you want to use.

Edit: Oh, and you might want to try lun_water01 for the water. It's a dark blue. Probably won't need any editing of the pond bottom using that. The fountains are using PLC_FntnMtl which doesn't actually look metal at all. You could maybe try a stainless steel kind of look.

Edit 2: Perhaps something like this:

https://www.darthparametric.com/files/kotor/k1/[K1]_Taris_Upper_City_South_Fountains_M02ac_02c_v2.7z

  • Thanks 1

Share this post


Link to post
Share on other sites
1 hour ago, DarthParametric said:

You can edit the ASCII directly in a text editor and reassign a new texture. Look for


node trimesh Mesh04

(should be line #12776) and then change


  bitmap LTS_Bwall04

Don't change "bitmap2", which is the lightmap. After you have pointed it to a different texture, you can compile it with MDLEdiit. You can discard the WOK (which is the walkmesh), as the vanilla one is fine.

It's easy enough to also split out the bottom of the grey surround if you also want to change the texture for that. In both instances though there might need to be a UV adjustment, depending on what texture/s you want to use.

Thanks for the heads-up! :cheers:

Quote

Edit: Oh, and you might want to try lun_water01 for the water. It's a dark blue. Probably won't need any editing of the pond bottom using that. The fountains are using PLC_FntnMtl which doesn't actually look metal at all. You could maybe try a stainless steel kind of look.

Edit 2: Perhaps something like this:

Yes! I have tried using "LUN_water01" as an exchange for "LMA_water02", and then using the vanilla "PLC_FntnMtl", I tweak the alpha to show its reflection bolder.

It is obvious, your "DP_FntMetal01" shows better details there 😁

Spoiler


To tell the truth, I'd prefer the "LMA_water02" than "LUN_water01"- as it looks more natural. It fits well with the fountain panel and Taris' ambience overall, matter of personal preferences really. 😁

  • Like 1

Share this post


Link to post
Share on other sites
22 minutes ago, ebmar said:

It is obvious, your "DP_FntMetal01" shows better detail there

It's just LTA_metal26 (or one of those) with an added alpha (inverted greyscale copy of the RGB) and a TXI pointing at an envmap.

Edit: Here's a version with the sides of the bottom of the pond split out into a different mesh so you can change the texture.

https://www.darthparametric.com/files/kotor/k1/[K1]_Taris_Upper_City_South_Fountains_M02ac_02c_v3.7z

I have no idea what the UVs are like though, so it may not look great with complex textures. Look for

node trimesh DPPondBaseSides



  • Like 1

Share this post


Link to post
Share on other sites
19 hours ago, DarthParametric said:

Edit: Here's a version with the sides of the bottom of the pond split out into a different mesh so you can change the texture.

...

Amazing! Many thanks for this version. :cheers:

I have come up with something using the latest version; not the best result I believe.

Spoiler


I'm utilising bump-map to the stone part, but it seems the result is insignificant. Perhaps the bump-map is not a good one. 😂

Quote

I have no idea what the UVs are like though, so it may not look great with complex textures. Look for


node trimesh DPPondBaseSides



Yes, I'm aware of that. Thanks for the heads-up anyway! :cheers:

  • Like 1

Share this post


Link to post
Share on other sites

Interesting idea with the water. I always thought it was meant to be a reflecting pool, but never thought to do anything with it out of laziness/lack of ideas.

I also suspect the water might be blocking it. Bump maps are reactive to light sources - if you put a bump mapped model in a really dark room, for example, you won't see much of a difference due to how even all the lighting is. So the water mesh may be blocking all light, even though it's meant to be translucent, just because of how the game calculates things.

However, there may be some fix for it. I believe there's a water alpha setting that isn't entirely understood, and you may also want to look into alpha blending to see if it would have an effect here.

  • Thanks 1

Share this post


Link to post
Share on other sites
2 hours ago, JCarter426 said:

Interesting idea with the water. I always thought it was meant to be a reflecting pool...

Yes, it have always bugged me the very first time I see the panel, second your thoughts; I have always thought it was meant to be some kind of a pond, but actually I have not think about the fountain, DP improvised with it and the result is just awesome! 🙌

Anyway, I do have concern with this space inside this structure too, maybe another pond could be implemented init? 🤣

Spoiler


Quote

I also suspect the water might be blocking it. Bump maps are reactive to light sources - if you put a bump mapped model in a really dark room, for example, you won't see much of a difference due to how even all the lighting is. So the water mesh may be blocking all light, even though it's meant to be translucent, just because of how the game calculates things.

Thanks for the insight! Actually I have just found that with my latest attempt, I bump the bumpmapscaling inside the TXI from 3 [which is the earliest attempt] to 8 and the result is quite significant. But it doesn't looks good lol.

Quote

However, there may be some fix for it. I believe there's a water alpha setting that isn't entirely understood, and you may also want to look into alpha blending to see if it would have an effect here.

Again, thanks for the link! Could the alpha opacity inside the water texture [let's say- "LMA_water02"] have its role with the transparency too? 🤔 Interesting to find out. 😁

Edited by ebmar
Fix a typo.

Share this post


Link to post
Share on other sites
17 hours ago, ebmar said:

I do have concern with this space inside this structure too, maybe another pond could be implemented init?

You could add a water plane to the floaty art statues at each end of the walkway easily enough.

Edit: Here you go -

https://www.darthparametric.com/files/kotor/k1/[K1]_Taris_Upper_City_South_Fountains_M02ac_02b_02e.7z

There was already a circular plane as the base, so I just duplicated that and repositioned/scaled it to make the water plane. The whole "pond" piece though is probably a tad high for water. It puts it at an awkward position to see it properly. Perhaps it needs to be moved downwards closer to the height of the central "trough".

  • Thanks 1

Share this post


Link to post
Share on other sites

Amazing DP, many thanks for it! I'm looking forwards to test it soon! If you don't mind, could you describe what are basic things to do to add the water plane to the structure? I have had opened the particular model of the area using the KotORmax and/or MDLEdit but I'm stuck like not knowing what to do. 😂 Many thanks for considering this! :cheers:

Share this post


Link to post
Share on other sites

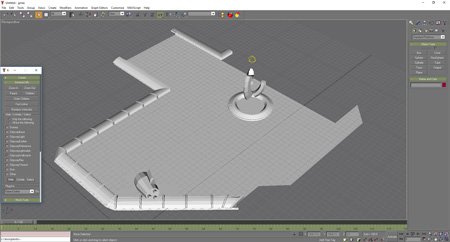

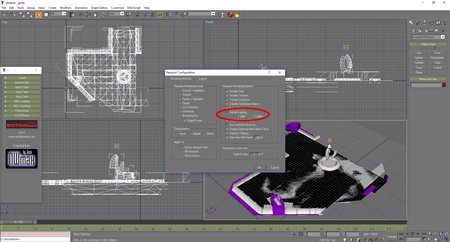

Some general tips. When importing level models, in order to see what you are doing you'll typically want to change to default lighting:

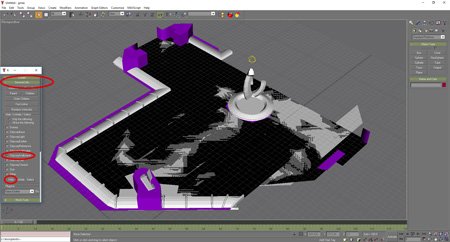

And hide walkmeshes:

GMax_Level_Editing_02_TH.jpg          GMax_Level_Editing_03_TH.jpg

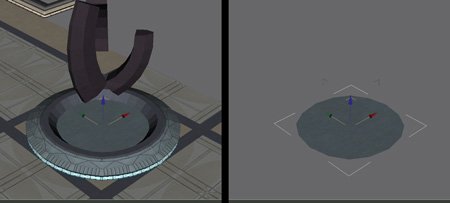

In this case things were pretty simple as there was already an existing mesh that could be duplicated for the water mesh. It was simply a case of selecting the mesh, going to Edit->Clone, choosing the Copy option (you must choose Copy in order to get an actual standalone duplicate), giving it an appropriate name, and then hitting OK.

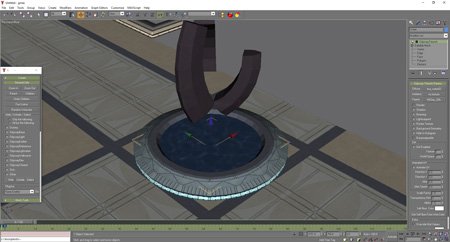

GMax_Level_Editing_04_TH.jpg          GMax_Level_Editing_05_TH.jpg

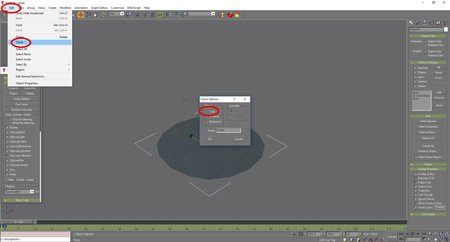

Then, with the new water plane object selected, go to the Editable Mesh modifier and enable the Vertex sub-level. Select all vertices and with the Move tool position them appropriately. You may also need to use the Scale tool in order to resize the mesh, if necessary.

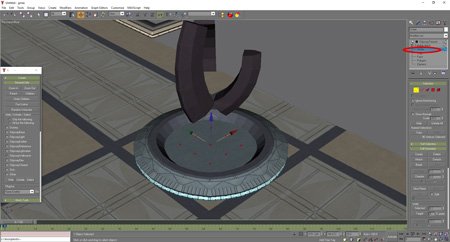

Now you can create a new water material and apply it to the mesh. Then edit the OdysseyTrimesh modifier options. Turn off Lightmapped, set Self Illum to pure white, enable Bumpmappable if it isn't already.

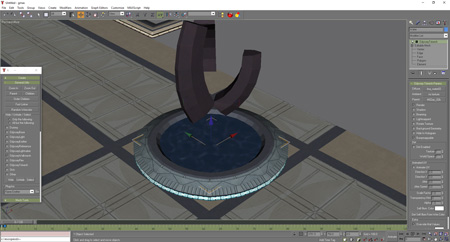

Then you are pretty much done. Make sure your new mesh is a child of the base, then export and compile.

In other cases you may need to create custom meshes, for example the rectangular trough from the initial central walkway model.

  • Like 1
  • Thanks 2
  • Light Side Points 1

Share this post


Link to post
Share on other sites

Fantastic! Many thanks for the efficient-yet-rather-effective tutorial DarthParametric! I'm in progress on practicing this information now. I will attach the said tutorial in the first post to have the potential reader an easier access to its knowledge. Again, thanks! And very much appreciated. :cheers:

____________________________________________

Anyways, I just found something that is quite "important" while ago; I surfed through the game files with the KotOR Tool and found a cubemap which labeled "CM_eh", and then leads me to assuming that it was linked to the Ebon Hawk's specularity. And yes it is; I opened the file using PS and there are E-Hawk's reflections init. So, I fiddled around with the vanilla EH's textures and have them all implemented with the said cubemap- assigning vanilla bump-map to the linked textures and later having this results:

  • This is the entrance/exit passage of the Ebon Hawk. I haven't checked the bump-map inside this room model so as we can see there are no bump-map applied there; but more-or-less, this how the room looks with the "CM_eh" applied to the textures:
Spoiler


  • This is the Hawk's dorm, and bump-map feature has been checked for this room.
Spoiler


  • This one of the Hawk's alley'; no bump-map applied but "CM_eh" has been utilised on them textures.
Spoiler


  • This is the intersection near the engine-room. The bump-map and "CM_eh" has been applied in this room model.
Spoiler


  • This is the Swoop's room; I ended-up changing the alpha on the bike with the standard reflection because the vanilla alpha is not really effective, I mean; I am certain that BioWare wanted to give the impression that the Swoop was having an incident before, looks from the reflection it gave. It produces an inside-bump-and-dents-like reflection but I don't know, maybe the execution could be nicer, I think.
Spoiler


  • This is the cabin whom Juhani used to chill. No bump-map applied yet in that room.
Spoiler


  • This is the cockpit. Bump-map applied.
Spoiler


Spoiler


  • And this is the Hawk's center room. Bump-map applied.
Spoiler


Edit: ndix UR's "Ebon Hawk K1 Fixes" are featured in the screenshots.

____________________________________________

To tell the truth, the primary motivation of this research was because of this screenshot of Ebon Hawk's interior from one of Apeiron's tweet while ago. I know, and it was obvious; different engine means different results. And even if with the same engine but with the wrong application of feature could leads to different results too. I only kind of curious about how optimal is this [IIRC] Odyssey Engine could be?

Many thanks for taking your time here. Hope this finding kind of helps. :cheers:

Edited by ebmar
  • Like 4

Share this post


Link to post
Share on other sites

Greetings, fellow Jedi!

I am curious; am I the only one encountering this oddity- which Master Vandar was facing [the way I see it] to a wrong direction?

Screenshots:

  • Spoiler




  • Spoiler




This happens right when we board-off from the Ebon Hawk to meet with the council the very first time. This glitch only appeared once, but somewhat bugged me point to the fact that it appeared in an important scene.

  • Can it be fixed?
  • Or was it intended in the first place? 😂

Many thanks for considering this, and may the Force be with you all! :cheers:

Edited by ebmar

Share this post


Link to post
Share on other sites

It can happen in conversations where the character is scripted to face towards a the party but the script chooses a party member that is off in another room. In this instance you'd expect the script to be looking for the player specifically, but you'd have to check the DLG for that scene to work out the specific script that is firing. I'd guess it is probably some generic global script, not a module-specific one, which could be the problem.

  • Thanks 1

Share this post


Link to post
Share on other sites
3 minutes ago, DarthParametric said:

It can happen in conversations where the character is scripted to face towards a the party but the script chooses a party member that is off in another room.

I would prefer to speculate that way too, than to think that it was intended by BioWare to give an easter-egg that Vandar can't bear to see the future lol.

Quote

In this instance you'd expect the script to be looking for the player specifically, but you'd have to check the DLG for that scene to work out the specific script that is firing. I'd guess it is probably some generic global script, not a module-specific one, which could be the problem.

It would have to wait then. I have had passed this scene but hoping this issue will be fixed in the near future by someone. 🤞

Share this post


Link to post
Share on other sites

Poking through the module, the dialogue used for that scene is part of dan13_zhar.dlg. That first line, "Ah, so you are the one who rescued Bastila." fires script k_pdan_zhar08:

void main() {
	ActionPauseConversation();
	ExecuteScript("k_pdan_player03", GetFirstPC(), 0xFFFFFFFF);
	ActionWait(12.0);
	ActionResumeConversation();
	DelayCommand(2.0, SetDialogPlaceableCamera(37));
	DelayCommand(6.0, SetDialogPlaceableCamera(2));
}

And k_pdan_player03 is:

void main() {
	ClearAllActions();
	ActionJumpToObject(GetObjectByTag("wp_pc_start", 0), 1);
	ActionMoveToObject(GetObjectByTag("dan13_WP_council", 0), 1, 1.0);
}

Perhaps that is the problem - there is no command to face the player. But scripting is not really my thing.

  • Thanks 1

Share this post


Link to post
Share on other sites

Greetings, fellow Jedi!

I have just found out that in the game files there is actually an idle bump-map for N_SithSoldierxx variant, which is inactive in the vanilla state of the game as seen in the screenshot here:

  • Spoiler




The said bump-map labelled as N_SithSoldier_b. We could find it with the KotOR Tool by scrolling down through the ERFs\TexturePacks\swpc_tex_tpa.erf\N\N_SithSoldier_b. The end result with assigning the Sith Soldier vanilla texture to its bump-map [N_SithSoldier_b] would show-up like this:

Actually the texture is not 100% vanilla as I am using mycube instead of CM_Baremetal for the cubemaps, and deepen the alpha quite a few- but we can see there is quite significant differences in the surface of the armor; as the bump-map version appears more lively. And the bump-map had a decent resolution as its TPC sized at 1,366 KB which I believe is 1024x1024 of resolution.

I'm not really sure why the dev decided not to activate it; as it immensely affect the appearance of the texture.

Hope this findings kind of helps! :cheers:

Share this post


Link to post
Share on other sites

Funnily enough, @DarthParametric noticed that too just last week.

If you want to see how it looks in the game, you can load the model in MDLEdit and go to edit > textures to enable the bump map flag for that. Then, change N_SithSolder01.txi to:

bumpshinytexture cm_baremetal
bumpmaptexture N_SithSoldier_b
  • Thanks 1

Share this post


Link to post
Share on other sites
20 minutes ago, ebmar said:

it immensely affect the appearance of the texture

You must be looking at something different, as there is no discernible difference with or without it as far as I can tell. We were discussing this a week or so ago on the Discord channel, looking at it in TSL. My conclusion was that neither game bothered using it because it added nothing of value.

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
