K1 Modern Driver Compatibility 1.0.0

Turn off grass.

For years that has been the first answer to almost any KOTOR problem, and it was good advice, because on a modern PC the grass really does tear itself across the sky.

This patch fixes that, and quite a lot else.

KOTOR decides how to light the world once, when it starts, choosing between two methods built for graphics cards of 2003. On most machines today neither is on offer, so the game quietly falls back to a path that was never finished: no proper lighting on walls and floors, no reflections on metal or armour, no fog, no soft shadows, and none of the screen effects. It still runs. It just looks wrong, and a lot of people have never seen it look right.

This rebuilds that lighting using something every modern card does support, and puts the game back on the paths the developers actually finished. The grass is one of them.

If you play on an NVIDIA card, the lighting has been working for you all along. Those drivers still carry register combiners, one of the two original methods, and it does the job properly. It is also an extension from 2001 that no other vendor implements, surviving on one company's willingness to keep shipping it. This moves every card onto a method that is still current, so there is one path everyone is exercising rather than one propped up by goodwill.

What you get back

• Grass that stays on the ground

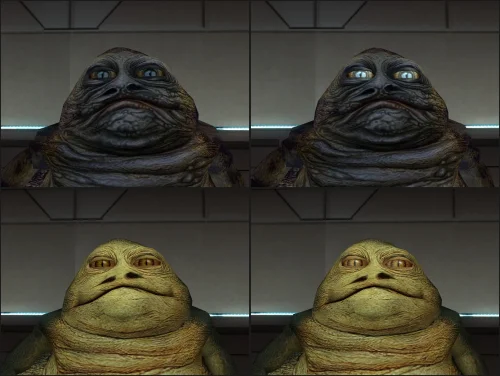

• Lighting on walls and floors, the baked lighting that makes interiors look lit rather than flat
• Reflections on metal, armour and polished surfaces
• Fog, in the places the game meant to have it
• Soft shadows, and the screen effects: bloom, blur, film grain, the distortion around force powers, and the colour wash on some cutscenes

Requirements

KOTOR 1, version 1.0.3. GOG, Steam and the CD release all work. Install it with the KotOR Patch Manager. Your game files are not modified; the manager applies the patch while the game runs.

It replaces the separate cube map fix and soft shadows fix. Both are folded in, so disable those if you have them enabled in the patch manager.
Source, releases and issues: https://codeberg.org/Synchro/kotor-modern-driver-compatibility

Settings, if you ever need them

You do not need any of this to play. The first time you run it, a file called `K1DriverCompat.ini` appears next to `swkotor.exe` with every option listed, explained, and switched off. Open it and delete the `#` in front of anything you want to change.

The one worth knowing about is `look`, which chooses between the two ways cards of 2003 drew bright light. `look = nvidia` is the default and the calmer of the two. `look = ati` lets strong lights bleach out what they land on, the way a Radeon did. Neither is a bug, and neither is more correct than the other.

Tested on

AMD, Intel and NVIDIA hardware, on Windows and on Linux through Proton, across the GOG, Steam and CD releases.

If something looks wrong

`logs/K1DriverCompat.log` in your game folder holds one session and is overwritten each run, so there is only ever one file to send. Setting `log = debug` in the ini before reproducing the problem makes it far more useful.

Thanks

@Lane and @J tested this on cards and I don't own. Nearly everything here is based on how some particular drivers behave, and that is worth nothing until somebody with that hardware runs it and reports back. The faults that turned up that way are ones I had no way of finding on my own. @Lane also wrote the KotOR Patch Manager, which is what this ships for.

LLM Disclosure

This project made use of an LLM during development, in the following capacities:

• Brainstorming: exploring possible approaches and design directions
• Decompilation assistance: help interpreting and structuring reverse-engineered code
• Code comments: refining and clarifying existing comments
• Skeletons and fixes: generating initial code scaffolding and minor fixes

All LLM-assisted output was modified and reviewed by a human before being committed.
